Performing AD LDAP Queries Like a Ninja

A while ago, a blueteam guy reached out to me, embarrassed because he could detect SharpHound LDAP queries but found no traces of LDAP queries made with bloodyAD (an AD audit tool I develop) in his SIEM. I was puzzled and wanted to investigate further but then I forgot about it until recently 😅. While developing new functionalities for my tool, I realized I couldn’t see any LDAP queries in the Domain Controller (DC) logs to aid me debugging.

LDAP logging in Active Directory

As far as I know there are 3 common methods (let me know if I forgot one):

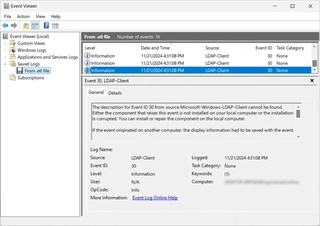

• Client-side Logging: Microsoft-Windows-LDAP-Client - Event ID 30
  This logs details such as the initiating process, search entry, filter and search scope when LDAP is accessed via the LDAP client API through wldap32.dll.




• Network sniffing: Capturing LDAP traffic.

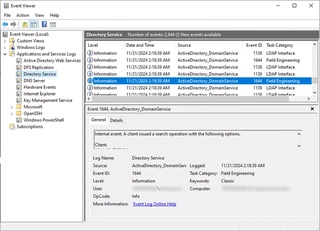

• DC-side Logging: Microsoft-Windows-ActiveDirectory_DomainService - Event ID 1644
  This logs expensive, inefficient or slow LDAP queries made to domain controllers from all interacting hosts.




Bypassing LDAP logging

• Client-side Logging: Easily bypassed by not being on a monitored machine or using a tool not calling wldap32.dll to perform LDAP queries (e.g., Python tools like bloodhound.py or bloodyAD).\
• Network sniffing: Bypassed using LDAP session encryption which is the default for bloodyAD and any tool using Windows libraries (LDAPS is not required for encryption).
• DC-side Logging: If configured strictly, logging cannot be bypassed. However, strict configuration is trickier than expected, which is why bloodyAD bypassed the detection capabilities of the blueteam guy.

Closer look of LDAP logging on DC

LDAP queries aren’t logged by default on DC-side. To enable logging, set the following registry key to 5:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NTDS\Diagnostics\Field Engineering

However, only some queries are logged this way. This logging capability is designed to detect expensive and inefficient LDAP queries, not threats. The default thresholds to consider a query as expensive and inefficient are the following:

• Expensive Search Results Threshold (default 10000): A LDAP query is considered expensive if it visits more than 10,000 entries.
• Inefficient Search Results Threshold (default 1000): A LDAP query is considered inefficient if the search visits more than 1,000 entries and the returned entries are less than 10 percent of the entries that it visited.
• Search Time Threshold (default 30s): A LDAP query is considered expensive/inefficient if it takes more than 30 seconds.

Those thresholds can be modified by creating the following registry keys and setting lower values to them:

The intuitive way would be to set everything to 0 to be able to see every LDAP query but actually from my experience, if you do that, Windows will then ignore these values and use the default values instead. This is the tricky part explaining that some threats detection tools can be blind for some LDAP queries.

The right thing to do to enable maximum logging is to only create Expensive search results threshold registry key and set it to 1. With these settings, even bloodyAD cannot bypass LDAP detection!

Conclusion

Logging correctly LDAP queries for threats detection is trickier than it seems. Blueteam guys should be careful when setting it up. For redteam guys, here are some tips to lower the chance of detection for your LDAP queries, especially for flagged ones like the one for AS-REP roastable users:

• Avoid using wldap32.dll on monitored machines
• Use a tool that support LDAP encryption
• Narrow the base of your LDAP query to stay below the thresholds (e.g., perform the AS-REP roastable users search on CN=Users,Dc=bloody,DC=corp instead of DC=bloody,DC=corp)

That’s all for this post, hope this gives you a better understanding of LDAP query detections in AD environments.
